TransmittableThreadLocal 源码 & 简单使用

发表于 分类于 >

可继承 Inheritable

InheritableThreadLocal 是官方提供的类，区别于 ThreadLocal 的功能就是使子线程创建时会赋值父线程当时的 ThreadLocal 值（引用），实现开启线程后将线程本地变量传递

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class ThreadLocalTest {

  	// 这里如果将 ThreadLocal 实现换为 ThreadLocal，则子线程内获取为 null
    private static final ThreadLocal<String> THREAD_LOCAL = new InheritableThreadLocal<>();

    public static void main(String[] args) {
        THREAD_LOCAL.set("Hello World");

        new Thread(() -> {
            System.out.println(Thread.currentThread() + " " + THREAD_LOCAL.get());
        }).start();

        System.out.println(Thread.currentThread() + " " + THREAD_LOCAL.get());
    }
}
1
2
Thread[main,5,main] Hello World
Thread[Thread-0,5,main] Hello World

实现

ThreadLocal 对象本质是 Thread 内 threadLocalMap 的 key

InheritableThreadLocal 功能的实现需要两方支持：

  • InheritableThreadLocal 将父类 ThreadLocal 关于 map 的实现重写为支持新的 map（inheritableThreadLocals）
  • Thread 内提供 InheritableThreadLocal 使用的 map，并且在线程创建期间将父线程的 map 值传递给子线程

InheritableThreadLocal 重写方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public class InheritableThreadLocal<T> extends ThreadLocal<T> {
    /**
     * Computes the child's initial value for this inheritable thread-local
     * variable as a function of the parent's value at the time the child
     * thread is created.  This method is called from within the parent
     * thread before the child is started.
     * <p>
     * This method merely returns its input argument, and should be overridden
     * if a different behavior is desired.
     *
     * @param parentValue the parent thread's value
     * @return the child thread's initial value
     */
    protected T childValue(T parentValue) {
        return parentValue;
    }

    /**
     * Get the map associated with a ThreadLocal.
     *
     * @param t the current thread
     */
    ThreadLocalMap getMap(Thread t) {
       return t.inheritableThreadLocals;
    }

    /**
     * Create the map associated with a ThreadLocal.
     *
     * @param t the current thread
     * @param firstValue value for the initial entry of the table.
     */
    void createMap(Thread t, T firstValue) {
        t.inheritableThreadLocals = new ThreadLocalMap(this, firstValue);
    }
}

Thread init 赋值

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public class Thread implements Runnable {
  	...

		private void init(ThreadGroup g, Runnable target, String name,
                      long stackSize, AccessControlContext acc,
                      boolean inheritThreadLocals) {
      	...
        // 如果参数开关开启，父线程存在 inheritableThreadLocals，则进行 createInheritedMap 并赋值
        if (inheritThreadLocals && parent.inheritableThreadLocals != null)
            this.inheritableThreadLocals =
                ThreadLocal.createInheritedMap(parent.inheritableThreadLocals);

        /* Stash the specified stack size in case the VM cares */
        this.stackSize = stackSize;

        /* Set thread ID */
        tid = nextThreadID();
    }

  ...
}

局限

InheritableThreadLocal 在部分场景有其局限性：

  • 只能在线程创建初始化时期赋值，线程池中的线程一般是复用的，所以如果使用线程池则无法传递

    当然这种行为符合预期的，因为 Inheritable 强调的就是继承性，线程池的场景强调的是传递性

    但对于使用线程池等会池化复用线程的执行组件的情况，线程由线程池创建好，并且线程是池化起来反复使用的；这时父子线程关系的ThreadLocal值传递已经没有意义，应用需要的实际上是把 任务提交给线程池时的ThreadLocal值传递到 任务执行时

    alibaba/transmittable-thread-local: transmittable-thread-local-功能

  • 传递的是引用而不是拷贝，使用中需要注意引用数据修改的影响；也没有提供拷贝相关的能力实现

线程池复用则无法传递

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
public class ThreadLocalTest {

  	// 单线程线程池
    private static final ThreadLocal<String> THREAD_LOCAL = new InheritableThreadLocal<>();

    private static final Executor EXECUTOR = Executors.newSingleThreadExecutor();

    public static void main(String[] args) {
      	// 为了让线程池 init 一个新线程
        EXECUTOR.execute(() -> System.out.println("init"));

        THREAD_LOCAL.set("Hello World");

      	// 复用线程
        EXECUTOR.execute(() -> {
            System.out.println(Thread.currentThread() + " " + THREAD_LOCAL.get());
        });

        System.out.println(Thread.currentThread() + " " + THREAD_LOCAL.get());
    }

}
1
2
3
init
Thread[main,5,main] Hello World
Thread[pool-1-thread-1,5,main] null

可传递 Transmittable

alibaba 开源的 transmittable-thread-local 可以解决满足需要

ThreadLocal的需求场景即TransmittableThreadLocal的潜在需求场景，如果你的业务需要 在使用线程池等会池化复用线程的执行组件情况下传递 ThreadLocal 值 则是 TransmittableThreadLocal 目标场景

下面是几个典型场景例子：

  1. 分布式跟踪系统 或 全链路压测（即链路打标）
  2. 日志收集记录系统上下文
  3. Session 级 Cache
  4. 应用容器或上层框架跨应用代码给下层SDK传递信息

官方文档写的非常详细，我就不赘述了，具体可以去查看官方文档～

简单使用

关于使用官方文档也描述的非常详细，这里就简单列举一下 Java 代码

依赖为 2.12.6 版本

从TTL v2.13+开始，升级到Java 8。 如果需要Java 6的支持，使用版本2.12.x

Maven Central

1
2
3
4
5
<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>transmittable-thread-local</artifactId>
    <version>2.12.2</version>
</dependency>

装饰 Runnable

使用 TtlRunnable 和 TtlCallable 来修饰传入线程池的 Runnable 和 Callable

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public class ThreadLocalTest {

  	// 使用 TransmittableThreadLocal
    private static final ThreadLocal<String> THREAD_LOCAL = new TransmittableThreadLocal<>();

    private static final ExecutorService EXECUTOR = Executors.newSingleThreadExecutor();

    public static void main(String[] args) {
        EXECUTOR.execute(() -> System.out.println("init"));

        THREAD_LOCAL.set("Hello World");

      	// 装饰 Runnable 为 TtlRunnable
        TtlRunnable ttlRunnable = TtlRunnable.get(() -> System.out.println(Thread.currentThread() + " " + THREAD_LOCAL.get()));
        EXECUTOR.execute(ttlRunnable);

        System.out.println(Thread.currentThread() + " " + THREAD_LOCAL.get());
    }

}
1
2
3
init
Thread[main,5,main] Hello World
Thread[pool-1-thread-1,5,main] Hello World

需要注意：即使提交同一个 Runnable 任务到线程池，每次都需要进行装饰操作，否则抓取的仍是上一次的上下文信息

装饰线程池

省去每次 Runnable 和 Callable 传入线程池时的修饰，这个逻辑可以在线程池中完成

通过工具类 TtlExecutors 完成，有下面的方法：

  • getTtlExecutor：修饰接口 Executor
  • getTtlExecutorService：修饰接口 ExecutorService
  • getTtlScheduledExecutorService：修饰接口 ScheduledExecutorService
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public class ThreadLocalTest {

    private static final ThreadLocal<String> THREAD_LOCAL = new TransmittableThreadLocal<>();

  	// 装饰线程池 ExecutorService
    private static final ExecutorService EXECUTOR = TtlExecutors.getTtlExecutorService(Executors.newSingleThreadExecutor());

    public static void main(String[] args) {
        EXECUTOR.execute(() -> System.out.println("init"));

        THREAD_LOCAL.set("Hello World");

      	// 不需要再装饰 Runnable
        EXECUTOR.execute(() -> System.out.println(Thread.currentThread() + " " + THREAD_LOCAL.get()));

        System.out.println(Thread.currentThread() + " " + THREAD_LOCAL.get());
    }

}
1
2
3
init
Thread[main,5,main] Hello World
Thread[pool-1-thread-1,5,main] Hello World

源码及思想

TransmittableThreadLocal

1
public class TransmittableThreadLocal<T> extends InheritableThreadLocal<T> implements TtlCopier<T>

继承了 InheritableThreadLocal，实现了 TtlCopier

重点关注 set 方法

1
2
3
4
5
6
7
8
9
10
@Override
public final void set(T value) {
    if (!disableIgnoreNullValueSemantics && null == value) {
        // may set null to remove value
        remove();
    } else {
        super.set(value);
        addThisToHolder();
    }
}

除了使用父类 InheritableThreadLocal 的 set 方法之后，调用了 addThisToHolder 方法

1
2
3
4
5
private void addThisToHolder() {
    if (!holder.get().containsKey(this)) {
        holder.get().put((TransmittableThreadLocal<Object>) this, null); // WeakHashMap supports null value.
    }
}

将 this 对象，即 TransmittableThreadLocal 对象作为 key 放进 holder 中，这里的 holder 是一个泛形为 Map 的 InheritableThreadLocal，下面会进行分析

这里的 Map 只用来作为 Set，WeakHashMap supports null value.；类似的思想还有使用 ConcurrentHashMap 实现并发安全的 Set

holder

holder 是 TransmittableThreadLocal 进行扩展的关键一环

1
2
3
4
5
6
7
8
9
10
11
12
private static final InheritableThreadLocal<WeakHashMap<TransmittableThreadLocal<Object>, ?>> holder =
        new InheritableThreadLocal<WeakHashMap<TransmittableThreadLocal<Object>, ?>>() {
            @Override
            protected WeakHashMap<TransmittableThreadLocal<Object>, ?> initialValue() {
                return new WeakHashMap<TransmittableThreadLocal<Object>, Object>();
            }

            @Override
            protected WeakHashMap<TransmittableThreadLocal<Object>, ?> childValue(WeakHashMap<TransmittableThreadLocal<Object>, ?> parentValue) {
                return new WeakHashMap<TransmittableThreadLocal<Object>, Object>(parentValue);
            }
        };

是一个匿名内部类，重写了 InheritableThreadLocal 的 initialValue 和 childValue 方法

  • initialValue：直接创建 Map
  • childValue：ThreadLocal.createInheritedMap 中复制值时调用，重写实现为包装一个新 Map

在上一步的 addThisToHolder 操作中，会将 TransmittableThreadLocal 的 this 对象放进 holder 的 Map 中

TtlRunnable

使用 TtlRunnable 的静态方法 get 对普通的 Runnable 进行装饰

1
2
3
4
5
6
7
8
9
10
11
12
13
public static TtlRunnable get(@Nullable Runnable runnable, boolean releaseTtlValueReferenceAfterRun, boolean idempotent) {
    if (null == runnable) return null;

  	// 这里避免过度装饰，只装饰一层
    if (runnable instanceof TtlEnhanced) {
        // avoid redundant decoration, and ensure idempotency
        if (idempotent) return (TtlRunnable) runnable;
        else throw new IllegalStateException("Already TtlRunnable!");
    }

  	// 包装成 TtlRunnable 对象
    return new TtlRunnable(runnable, releaseTtlValueReferenceAfterRun);
}

最终通过 TtlRunnable 的构造器包装成 TtlRunnable 对象

1
2
3
4
5
private TtlRunnable(@NonNull Runnable runnable, boolean releaseTtlValueReferenceAfterRun) {
    this.capturedRef = new AtomicReference<Object>(capture());
    this.runnable = runnable;
    this.releaseTtlValueReferenceAfterRun = releaseTtlValueReferenceAfterRun;
}

整个 ThreadLocal 传递的关键都在 capturedRef 对象，赋值的关键逻辑在 Transmitter.capture 方法

Transmitter

Transmitter 扮演传递者的角色，是 TransmittableThreadLocal 的公有静态内部类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
    public static class Transmitter {
        /**
         * Capture all {@link TransmittableThreadLocal} and registered {@link ThreadLocal} values in the current thread.
         *
         * @return the captured {@link TransmittableThreadLocal} values
         * @since 2.3.0
         */
        @NonNull
        public static Object capture() {
            return new Snapshot(captureTtlValues(), captureThreadLocalValues());
        }

        private static HashMap<TransmittableThreadLocal<Object>, Object> captureTtlValues() {
            HashMap<TransmittableThreadLocal<Object>, Object> ttl2Value = new HashMap<TransmittableThreadLocal<Object>, Object>();
            for (TransmittableThreadLocal<Object> threadLocal : holder.get().keySet()) {
                ttl2Value.put(threadLocal, threadLocal.copyValue());
            }
            return ttl2Value;
        }

...

创建一个 Snapshot 的对象，将 holder 中的 keys（也就是将 WeakHashMap 当作 Set 来使用，key 为 TransmittableThreadLocal 对象）遍历取出，同时调用 copyValue

1
2
3
4
5
6
7
private T copyValue() {
    return copy(get());
}

public T copy(T parentValue) {
    return parentValue;
}

基础的 TransmittableThreadLocal 实现就是将 value get 出来，不涉及 copy 等操作

完成这些后，TtlRunnable 就实例化完成，并且保存了 Snapshot 结构，保存当前时间点、当前线程下的 TransmittableThreadLocal 对象及其 value

run

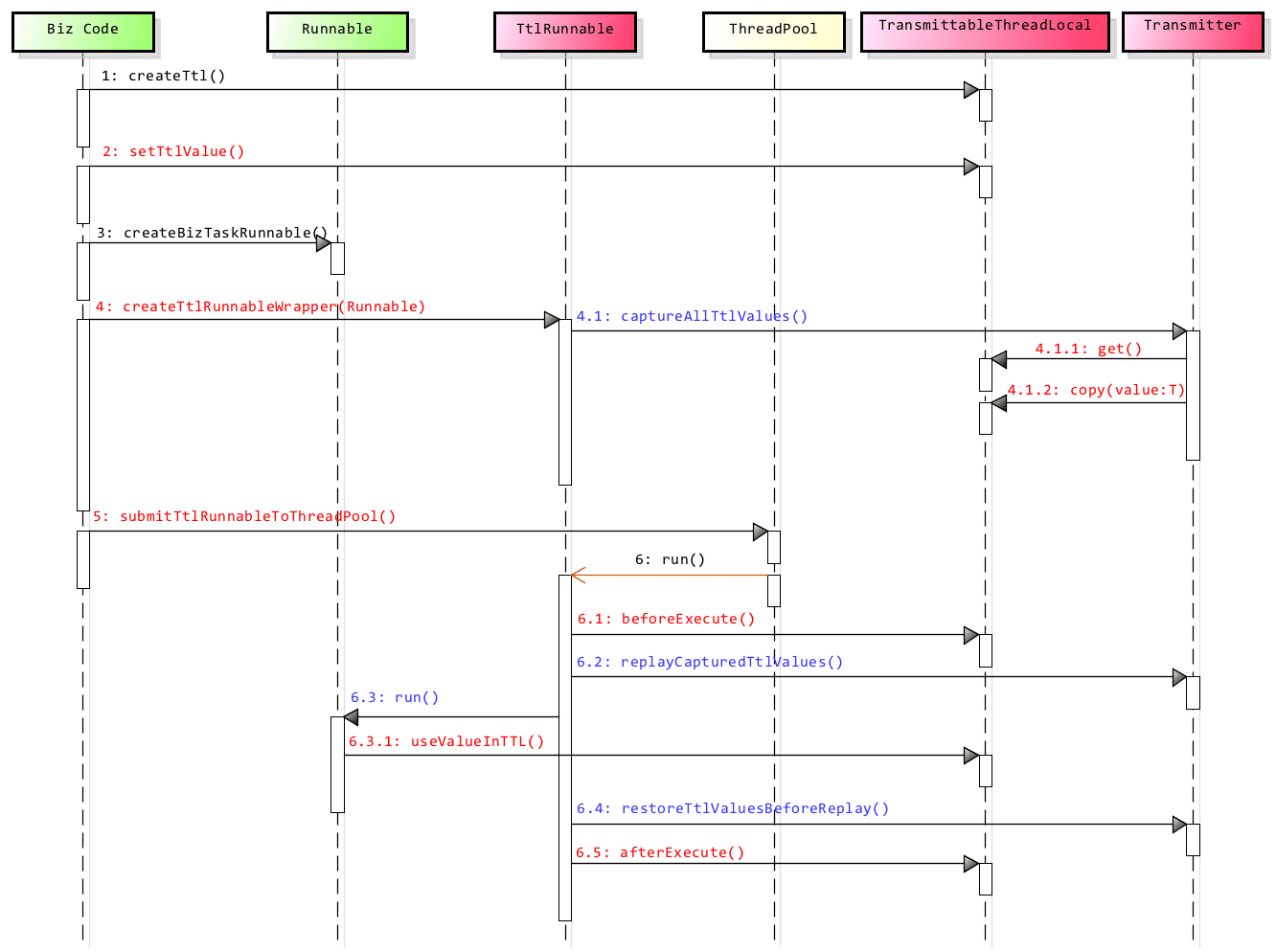

最终放入线程池的 Runnable 是被装饰的 TtlRunnable

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@Override
public void run() {
  	// 获取当时保存的 父线程 + 装饰那一刻的 Snapshot
    final Object captured = capturedRef.get();
  	// captured == null 说明该 Runnable 已经被 run 了
  	// capturedRef.compareAndSet(captured, null) 使用原子类保证争抢执行资格
    if (captured == null || releaseTtlValueReferenceAfterRun && !capturedRef.compareAndSet(captured, null)) {
        throw new IllegalStateException("TTL value reference is released after run!");
    }

  	// replay 重放
    final Object backup = replay(captured);
    try {
      	// 执行被装饰的真正的 Runnable
        runnable.run();
    } finally {
      	// restore 恢复
        restore(backup);
    }
}

replay

保存当前时间的副本，依靠传参进入的快照 captured 将设置当前线程的上下文环境

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
public static Object replay(@NonNull Object captured) {
			// 取出快照
            final Snapshot capturedSnapshot = (Snapshot) captured;
            return new Snapshot(replayTtlValues(capturedSnapshot.ttl2Value), replayThreadLocalValues(capturedSnapshot.threadLocal2Value));
        }

        @NonNull
        private static HashMap<TransmittableThreadLocal<Object>, Object> replayTtlValues(@NonNull HashMap<TransmittableThreadLocal<Object>, Object> captured) {
            HashMap<TransmittableThreadLocal<Object>, Object> backup = new HashMap<TransmittableThreadLocal<Object>, Object>();

          	// 注意这里的 holder，此时已经在子线程内了
            for (final Iterator<TransmittableThreadLocal<Object>> iterator = holder.get().keySet().iterator(); iterator.hasNext(); ) {
                TransmittableThreadLocal<Object> threadLocal = iterator.next();

                // backup
                backup.put(threadLocal, threadLocal.get());

                // clear the TTL values that is not in captured
                // avoid the extra TTL values after replay when run task
                if (!captured.containsKey(threadLocal)) {
                    iterator.remove();
                    threadLocal.superRemove();
                }
            }

            // set TTL values to captured
            setTtlValuesTo(captured);

            // call beforeExecute callback
            doExecuteCallback(true);

            return backup;
        }

这里就是为了拿到副本，为什么需要拿到副本而不是直接根据快照设置值并恢复呢

当我们提交的任务被划分的线程有自己的上下文（任务的提交和实际执行中间存在时间差，如果这个时间段出现了上下文的更新，那么直接覆盖将导致本次更新丢失），那么就需要保证在任务执行的时候是当时的上下文，执行完毕后需要还原

  1. 获取当前线程，上线文快照
  2. 如果当前线程有快照里面不存在的上下文，那么先清除掉
  3. 将创建TtlRunnable时保存的快照设置到当前线程的上下文中（实现 ThreadLocal 传递的核心）
  4. doExecuteCallback 执行钩子方法
  5. 返回保存的副本

restore

根据 replay 时生成的副本对上下文环境进行恢复

1
2
3
4
5
public static void restore(@NonNull Object backup) {
    final Snapshot backupSnapshot = (Snapshot) backup;
    restoreTtlValues(backupSnapshot.ttl2Value);
    restoreThreadLocalValues(backupSnapshot.threadLocal2Value);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
private static void restoreTtlValues(@NonNull HashMap<TransmittableThreadLocal<Object>, Object> backup) {
    // call afterExecute callback
    doExecuteCallback(false);

    for (final Iterator<TransmittableThreadLocal<Object>> iterator = holder.get().keySet().iterator(); iterator.hasNext(); ) {
        TransmittableThreadLocal<Object> threadLocal = iterator.next();

        // clear the TTL values that is not in backup
        // avoid the extra TTL values after restore
        if (!backup.containsKey(threadLocal)) {
            iterator.remove();
            threadLocal.superRemove();
        }
    }

    // restore TTL values
    setTtlValuesTo(backup);
}

根据副本恢复当前线程的 ThreadLocal

线程池

对线程池的装饰实现和 Runnable 一致，将真正的线程池包装在 Wrapper 对象中

根据线程池实现的不同，有三个方法：

  • getTtlExecutor：返回 Executor
  • getTtlExecutorService：返回 ExecutorService
  • getTtlScheduledExecutorService：返回 ScheduledExecutorService

以 getTtlExecutor 为例

1
2
3
4
5
6
7
8
public static Executor getTtlExecutor(@Nullable Executor executor) {
    // 判断是否是 TtlAgent 加载、或者是 TtlEnhanced，避免重复装饰
    if (TtlAgent.isTtlAgentLoaded() || executor == null || executor instanceof TtlEnhanced) {
        return executor;
    }
    // ExecutorTtlWrapper
    return new ExecutorTtlWrapper(executor, true);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
class ExecutorTtlWrapper implements Executor, TtlWrapper<Executor>, TtlEnhanced {
    private final Executor executor;
    protected final boolean idempotent;

    ExecutorTtlWrapper(@NonNull Executor executor, boolean idempotent) {
        this.executor = executor;
        this.idempotent = idempotent;
    }

    // 帮忙调用了 TtlRunnable.get
    @Override
    public void execute(@NonNull Runnable command) {
        executor.execute(TtlRunnable.get(command, false, idempotent));
    }
    ...
}

所以本质上就是包装为 ExecutorTtlWrapper 后重写了提交任务等方法，实现内主动去调用了装饰方法

图示

个人认为 Transmittable 核心的思想：

  • 不同 ThreadLocal 之间的关系，保存、赋值、恢复等操作的流程
  • 并发场景下的实现，使用原子类、副本的保存和恢复等

扩展 TTL

上面提到 InheritableThreadLocal 没有提供拷贝相关的能力，TTL 也进行了支持

SuppliedTransmittableThreadLocal 继承了 TransmittableThreadLocal，提供了传参 Supplier 和 TtlCopier 来进行初始值、继承值拷贝、传递值拷贝的设置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
private static final class SuppliedTransmittableThreadLocal<T> extends TransmittableThreadLocal<T> {
    // initialValue
    private final Supplier<? extends T> supplier;
    // childValue InheritableThreadLocal
    private final TtlCopier<T> copierForChildValue;
    // copy
    private final TtlCopier<T> copierForCopy;

    SuppliedTransmittableThreadLocal(Supplier<? extends T> supplier, TtlCopier<T> copierForChildValue, TtlCopier<T> copierForCopy) {
        if (supplier == null) throw new NullPointerException("supplier is null");
        this.supplier = supplier;
        this.copierForChildValue = copierForChildValue;
        this.copierForCopy = copierForCopy;
    }

    @Override
    protected T initialValue() {
        return supplier.get();
    }

    @Override
    protected T childValue(T parentValue) {
        if (copierForChildValue != null) return copierForChildValue.copy(parentValue);
        else return super.childValue(parentValue);
    }

    @Override
    public T copy(T parentValue) {
        if (copierForCopy != null) return copierForCopy.copy(parentValue);
        else return super.copy(parentValue);
    }
}

通过静态方法 withInitial、withInitialAndCopier 进行创建

简单使用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
public class ThreadLocalTest {

    private static final ThreadLocal<Student> THREAD_LOCAL =
        TransmittableThreadLocal.withInitialAndCopier(
        () -> new Student("默认", 0),
        value -> new Student(value.name + " Inherit", value.age),
        value -> new Student(value.name + " Transmit", value.age)
    );

    // 装饰线程池 ExecutorService
    private static final ExecutorService EXECUTOR =
        TtlExecutors.getTtlExecutorService(Executors.newSingleThreadExecutor());

    public static void main(String[] args) {
        System.out.println("主线程设置前：" + THREAD_LOCAL.get());

        THREAD_LOCAL.set(new Student("张三", 20));
        System.out.println("主线程设置后：" + THREAD_LOCAL.get());

        // 新线程
        new Thread(() -> {
            Student student = THREAD_LOCAL.get();
            System.out.println("新线程：" + student);
        }).start();

        // 更新
        THREAD_LOCAL.set(new Student("张三2", 21));
        System.out.println("主线程修改：" + THREAD_LOCAL.get());

        // 线程池
        EXECUTOR.execute(() -> {
            Student student = THREAD_LOCAL.get();
            System.out.println("线程池：" + student);
        });
    }

    @Data
    @AllArgsConstructor
    private static class Student {
        private String name;
        private Integer age;
    }
}
1
2
3
4
5
主线程设置前：ThreadLocalTest.Student(name=默认, age=0)
主线程设置后：ThreadLocalTest.Student(name=张三, age=20)
主线程修改：ThreadLocalTest.Student(name=张三2, age=21)
新线程：ThreadLocalTest.Student(name=张三 Inherit, age=20)
线程池：ThreadLocalTest.Student(name=张三2 Transmit, age=21)

参考

alibaba/transmittable-thread-local at 2.x (github.com)

TransmittableThreadLocal源码分析 - 简书 (jianshu.com)
